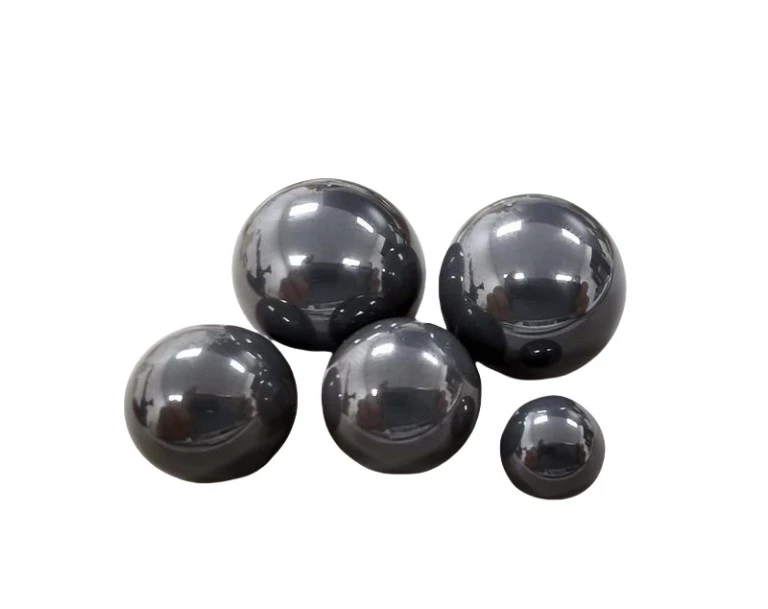

Automotive-Grade Silicon Nitride (Si3N4) Balls: Overview and Applications

Silicon nitride (Si3N4) ceramic balls are high-performance engineering components widely used in automotive applications due to their exceptional mechanical, thermal, and chemical properties. Automotive-grade Si3N4 balls are specifically engineered to meet stringent industry standards, ensuring reliability in demanding environments such as hybrid/electric vehicle (EV) drivetrains, bearings, and turbochargers.

1. Key Properties of Automotive-Grade Si3N4 Balls

Silicon nitride offers several advantages over traditional steel or other ceramic materials:

(1) Mechanical Strength & Durability

• High Hardness (HV 1400-1600): Resists wear and deformation under heavy loads.
• Low Density (3.2 g/cm³): ~40% lighter than steel, reducing rotational inertia in bearings.
• High Fracture Toughness: More resistant to cracking compared to other ceramics like alumina (Al2O3).

(2) Thermal Stability

• Low Thermal Expansion (3.2 × 10⁻⁶/°C): Maintains dimensional stability under extreme temperature fluctuations.
• High-Temperature Resistance (up to 1,400°C): Suitable for turbochargers and high-speed motor bearings.

(3) Corrosion & Fatigue Resistance

• Chemically inert: Resistant to acids, alkalis, and oxidation, extending lifespan in harsh environments.
• Long Fatigue Life: Performs reliably under cyclic stress, critical for automotive drivetrains.

(4) Electrical Insulation

• Non-conductive: Prevents electrical arcing in EV motor bearings, reducing electromagnetic interference (EMI).

2. Automotive Applications

(1) Hybrid & Electric Vehicle (EV) Bearings

• Used in motor shaft bearings due to their lightweight and electrical insulation properties, reducing energy loss.
• Improves efficiency by minimizing friction in high-speed rotor applications (e.g., >20,000 RPM).

(2) Turbochargers

• Withstands extreme heat and rotational speeds (>200,000 RPM) in exhaust gas turbochargers.
• Reduces "turbo lag" due to lower inertia compared to steel balls.

(3) Fuel Injection Systems

• Used in high-pressure fuel pumps for diesel/GDI engines, ensuring wear resistance under constant stress.

(4) Aerospace & High-Performance Racing

• Also found in Formula 1 and aerospace bearings due to their reliability under extreme conditions.

3. Manufacturing Standards & Quality Control

Automotive-grade Si3N4 balls must meet strict industry certifications, including:

• ISO 26602: Standard for fine ceramics in rolling bearings.
• ASTM F2094/F2094M: Specifies material properties for ceramic balls.
• IATF 16949: Automotive quality management compliance.

Key Manufacturing Processes:

• Hot Isostatic Pressing (HIP): Ensures high density and defect-free microstructure.
• Precision Grinding & Polishing: Achieves sub-micron surface finish (Ra < 0.02 µm) for smooth operation.

4. Comparison with Alternatives

Advantages over Steel: Longer lifespan, lower friction, and better performance in EVs.
Advantages over Alumina: Higher fracture toughness and thermal shock resistance.
